Technical data sheet
Diosna P 400 A high shear mixer granulator
Ref. PP-1012 · 1986
Technical data
| Manufacturer | Diosna |
|---|---|
| Model / type | P 400 A |
| Year of manufacture | 1986 |
| Condition | Used, as inspected |
| Capacity / output | Bowl volume approx. 400 l |
| Power supply | 3/N ~ 415 V, 50 Hz, 50 A |
| Product contact parts | Stainless steel |
Documentation
Operating manual, Electrical drawings, Spare parts list, Material certificates 3.1
Description

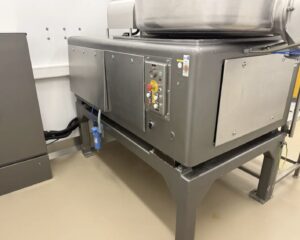

Vertical high shear mixer granulator built by Diosna Dierks & Söhne GmbH & Co. KG (Osnabrück, Germany), designed for pharmaceutical wet and dry granulation, mixing and homogenisation of powders. Stainless steel product contact parts, hinged bowl lid with charging port and inspection openings, three-blade bottom-driven impeller and a horizontally mounted side chopper with pneumatic actuation. Two-speed impeller and chopper drives with a current and time controlled process (current control / time- and current-control selector). The side discharge valve is pneumatically operated. Supplied with: Stainless steel control panel with mimic diagram, ammeter, timer, emergency stop and signal tower Separate electrical cabinet with main switch Stainless steel access platform with stairs and handrail Technical data: Type: P 400 A Bowl volume: approx. 400 l Power supply: 3/N ~ 415 V, 50 Hz Rated current: 50 A The machine was removed from a GMP cleanroom environment and is in good technical and visual condition.
Price on request
