Technical data sheet

Belimed PH 860.2-2ST double-door washer-disinfector

Ref. PP-1036 · 2011

Technical data

ManufacturerBelimed
Model / typeBelimed PH 860.2-2ST
Year of manufacture2011
ConditionUsed, as inspected
GMP / documentation statusComplete documentation available

Documentation

Operating manual, Electrical drawings, IQ / OQ protocols, Spare parts list, Calibration certificate, Material certificates 3.1

Description

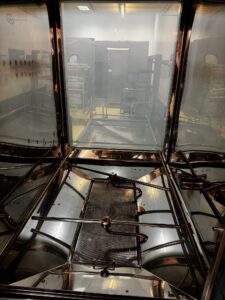

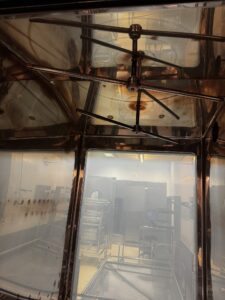

Belimed PH 860.2-2ST washer-disinfector in two-door, pass-through design, built into a cleanroom partition: loaded from the unclassified side and unloaded into the clean room. Rotating spray arms above and below the load, a glass door on each side, and the control terminal on the clean side. The machine was in regular production use until decommissioning and is in working condition. Nameplate data: Belimed Technik GmbH, type PH860.2-2ST, built 2011, 3N AC 400 V / 50 Hz TN-S, rated current 43 A, rated output 31 kW, electric heating 27.5 kW, steam 2.5 bar, compressed air 6–8 bar, protection class IP54. The cycle counter read 14,591 cycles when the machine was switched on on 5 October 2026.

Price on request
