Technical data sheet
BOC Edwards LyoMax 15 freeze dryer
Ref. PP-1038 · 2007
Technical data
| Manufacturer | BOC Edwards |
|---|---|
| Model / type | BOC Edwards LyoMax 15 |
| Year of manufacture | 2007 |
| Condition | Used, as inspected |
| Serial number | MTE2770 |
| Capacity / output | Chamber and condenser rated 2.07 barg at 135 °C (SIP) |
| Power supply | 400 V, 3 Ph, 50 Hz · 159 A Volllaststrom · 400 A Trenner |
| GMP / documentation status | Complete documentation available |
Documentation
Operating manual, Electrical drawings, IQ / OQ protocols, Spare parts list, Pressure vessel certificate, Calibration certificate, Material certificates 3.1
Description

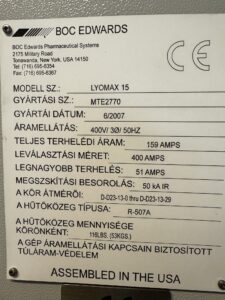

BOC Edwards LyoMax 15 production freeze dryer, serial no. MTE2770, built in June 2007 by BOC Edwards Pharmaceutical Systems Chamber and condenser are both code-stamped pressure vessels — chamber 9250-02, serial 740, and condenser 9250-03, serial 741, both built in 2007 — rated 2.07 bar at 135 °C with a minimum design metal temperature of −80 °C. Both are therefore rated for SIP Two-circuit refrigeration on R-507A with a 53 kg (116 lb) charge per circuit and two compressor sets; hydraulic stoppering; Siemens S7 PLC with a SIMATIC touch-screen control cabinet and UPS backup. Electrical supply 400 V / 3 ph / 50 Hz, 159 A full load current, 400 A disconnect, 50 kA interrupting rating. The unit is complete, including both compressor sets, the control cabinet and the power distribution panel.
Price on request
