Technical data sheet
Lödige HC 130 Hi-Coater film coating machine
Ref. PP-1050 · 1985
Technical data
| Manufacturer | Lödige |
|---|---|
| Model / type | Lödige Hi-Coater HC 130 |
| Year of manufacture | 1985 |
| Condition | Used, as inspected |
| Serial number | 11017 (order no.; wiring diagram EM 11017) |
| Capacity / output | Three automatic spray guns; drum speed 2–14 rpm; atomising air 28 m³/h per gun at 5 bar |
| Power supply | 415 V, 3~, 50 Hz · 26 A · control voltage 24 V |
| Product contact parts | Stainless steel drum; spray line fittings stamped AISI 316 |
| GMP / documentation status | Partial documentation available |
Documentation
Operating manual, Electrical drawings, Spare parts list, Calibration certificate, Material certificates 3.1
Description

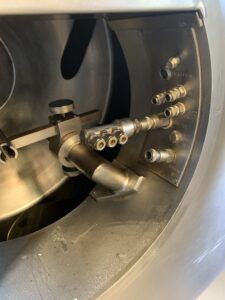

Lödige Hi-Coater HC 130 film coating machine built in 1985. Perforated coating drum with baffles, and a pneumatic, two-hand interlocked discharge door. Spraying is by three automatic guns on a common stainless spray bar, each with its own liquid and air adjustment; atomising air is rated 28 m³/h per gun at 5 bar, and the guns work at roughly 300 mm from the bed. The drum is driven by a 2 kW Siemens motor in explosion-protected design (Ex e II T3, PTB 84/4000) through a Flender VCUS 155 variable-speed gear, giving 2 to 14 rpm. The machine is offered with the equipment around it: inlet air unit with filter drawers and a steam heat exchanger, exhaust fan, Hainke dust collector with compressed-air filter cleaning, the ducting, and the suspension preparation tank with a Premier 2500M mixer. Coating liquid is metered by a Micro Motion Coriolis meter in kg/h with a totaliser.
Price on request
