Technical data sheet
Getinge GE 91413 ARB-2 double-door pass-through steam sterilizer
Ref. PP-1073
Technical data
| Manufacturer | Getinge |
|---|---|
| Model / type | Getinge GE 91413 ARB-2 |
| Condition | Used, as inspected |
| Capacity / output | Large GE series, chamber approx. 900 × 1400 × 1300 mm (per Getinge model range) |
| GMP / documentation status | Partial documentation available |
Description

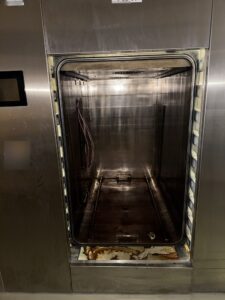

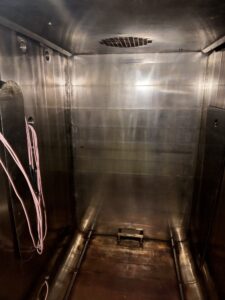

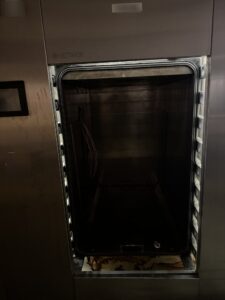

Getinge GE 91413 ARB-2 double-door pass-through steam sterilizer, built into a cleanroom partition with a door on each side. Horizontally sliding doors on both sides. The chamber floor sits approximately 200 to 300 mm above room floor level. Two rails run along the chamber floor and there is an air outlet in the chamber ceiling. Chamber pressure gauge and colour touch panel on one side, emergency stop and door interlock on the other. The process control was renewed in 2020. In Getinge’s GE steam sterilizer range the 91413 designation belongs to the large GE series, which corresponds to a chamber of approximately 900 × 1400 × 1300 mm, around 1.6 m³. This figure is taken from the manufacturer’s published model range and not from a measurement of this unit; the chamber will be measured on request. Service side: vacuum pump, valve panel, control cabinet and the steam, compressed air and water connections. No nameplate is present on the machine, so the serial number and the year of construction cannot be stated. Apart from the type designation and the 2020 control refurbishment, everything described here is taken from the photographs. There is discolouration and surface corrosion on the chamber floor, visible in the photographs. Available for inspection by appointment, sold ex works in the condition inspected.
Price on request
