Büchi Glas Uster 30 L jacketed glass reactor
Ref. PP-1056 · Year 2000
Price on request
We usually reply within one working day with price, availability and the condition detail you ask for.
Request quote Download data sheet (PDF)| Manufacturer | Büchi Glas Uster |
|---|---|
| Model / type | Büchi Glas Uster, drawing no. 13403.01 |
| Year of manufacture | 2000 |
| Condition | Used, as inspected |
| Serial number | 29196 |
| Capacity / output | Pressure chamber approx. 30 litres; −1 / +0.5 bar; −50 / +200 °C; ΔT jacket/contents 20 K |
| Power supply | 230/400 V, 3~ · 0.37 kW stirrer motor, 1355 rpm, EEx e II T4 |
| Product contact parts | Borosilicate glass 3.3 |
Description

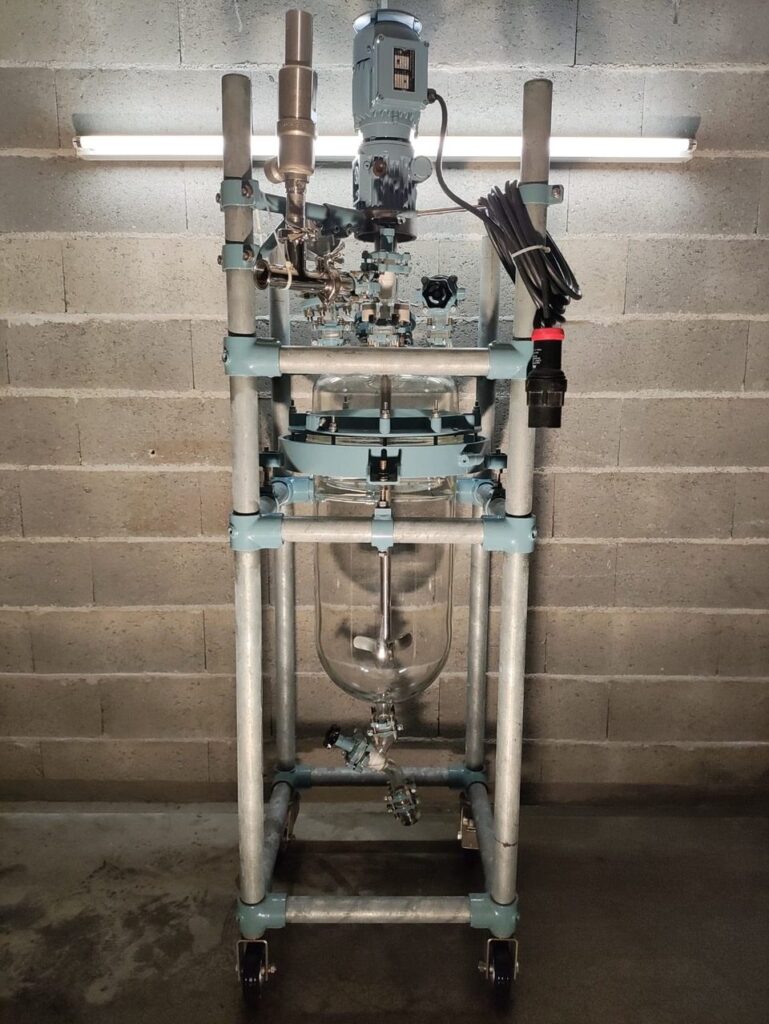

Büchi Glas Uster jacketed glass reactor, works no. 29196, built in 2000. The vessel plate gives a pressure chamber of approximately 30 litres, permissible working pressure −1 / +0.5 bar, permissible working temperature −50 to +200 °C and a permissible temperature difference between jacket and contents of 20 K. The glass is marked Borosilicate 3.3.
Anchor stirrer driven by a 0.37 kW Elektromotorenwerk Brienz motor, 230/400 V, 1355 rpm, the motor plate marked EEx e II T4 with an ATEX certificate number. Glass lid with several nozzles on a bolted flange, pressure gauge reading −1 to +0.5 bar, the whole assembly on a steel frame.
This unit is offered on consignment. Further photographs, the complete documentation and the condition detail you need before travelling are released once a short non-disclosure and non-circumvention agreement is signed. Sold ex works in the condition inspected.
