Normag TFE 0.5 m² thin-film evaporator unit, new and unused

Description

Normag thin-film evaporator unit TFE 0.5 m², built in 2006 and never installed: the unit is new and unused, in its original factory packaging. It is a complete plant on one frame for concentrating solutions and recovering solvents under vacuum in batch operation.

The core is a DN 200 wiped-film evaporator in stainless steel 1.4301 with 0.5 m² of heated surface and a top-driven roller wiper system in 1.4301 and PTFE, adjustable up to approximately 200 rpm. The evaporator jacket is heated by a Single hot-water thermostat. The vapour is condensed in a 2.5 m² condenser in borosilicate glass 3.3, followed by a glass cold trap.

The feed is drawn from a 200-litre stainless-steel feed vessel by an Alldos diaphragm dosing pump and distributed over the top of the evaporator. Concentrate and distillate are collected separately in two horizontal 100-litre stainless-steel receivers. The vessels are designed for −1 / +0.5 barg. Level switches stop the feed pump automatically when a receiver is full or the feed vessel is empty. The unit can be cleaned in place with standard CIP media.

The vacuum is generated by a Vacuubrand system: an MD 4C three-stage chemistry diaphragm pump (3.0 m³/h, 2 mbar ultimate vacuum), a CVC 2 vacuum controller and a VV 6C solenoid valve. It is part of the package.

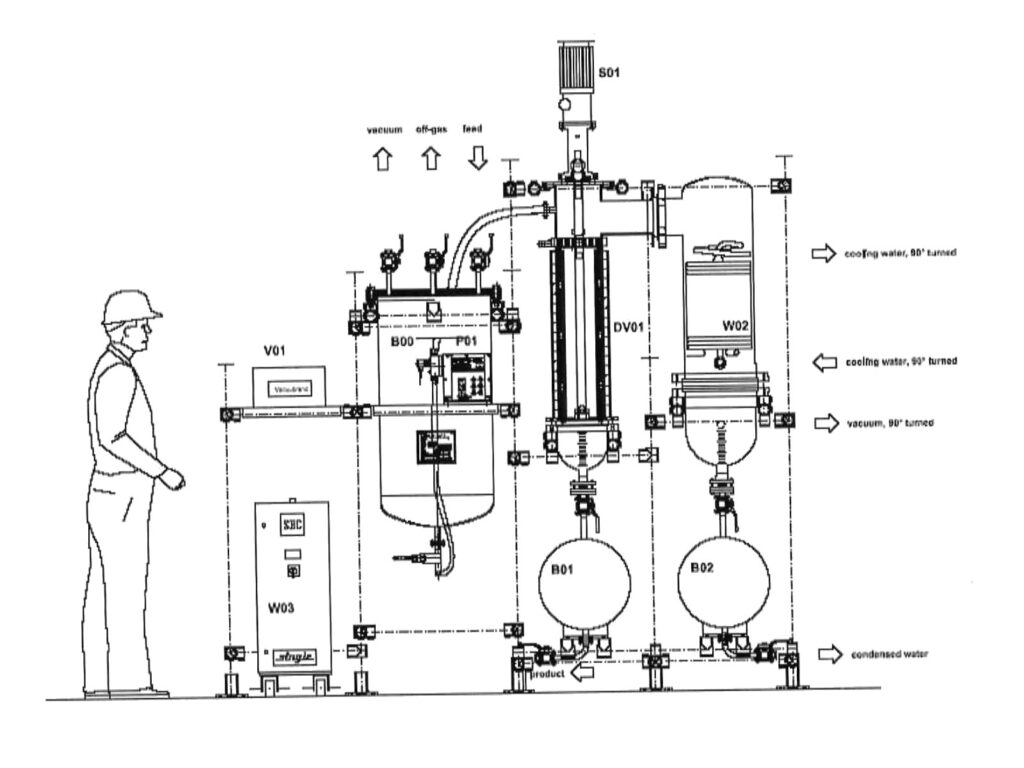

Overall dimensions 2500 × 1160 × 2950 mm (W × D × H), weight approx. 1800 kg, 230/400 V, 50 Hz, 45 kW connected load. The Normag documentation includes the operating manual, layout drawing, flow diagram, parts list, CE declaration and the manuals of the main components. The images show the manufacturer's layout drawing and flow diagram.
